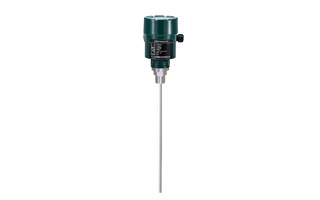

PWRF212
Should be used:
corrosive liquid switch measure
Length:
standard: (350/500)mm
Customizable :(500~3000)mm
Medium temperature (40 ~ 150 ℃)
Probe material: stainless steel, PTFE/FEP
Connection: defect "NPT threads; The flange
Power supply: 24V DC/220V AC
Relative humidity: less than 85%
Output signal: two sets of normally open and normally closed contacts
Contact capacity: 24V DC/8A; AC 220 v / 5 a
Delay time: 0 ~ 99S(adjustable)
Protection grade: IP67
Explosion-proof grade: Exd IIC T6 Gb
Installation: top mounting and side mounting
