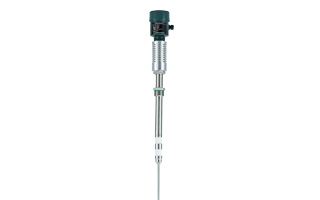

PWFR213
Should use:
liquid, solid material switch quantity measurement
Length:
standard type: (350/500)mm
Customizable :(500~3000)mm
Medium temperature： (180 ~ 500 ℃)
Probe material: Stainless steel, ceramics
Connection: G1?＂Athreads; The flange
Power supply: 24V DC/8A；220V AC/5A
Relative humidity: ≤85%
Output signal: two sets of normally open and normally closed contacts
Contact capacity: 24V DC/8A; AC 220 v / 5 a
Delay time: 0 ~ 99S(adjustable)
Protection grade: IP67
Explosion-proof grade: Exd IIC T6 Gb
Installation: top mounting and side mounting
