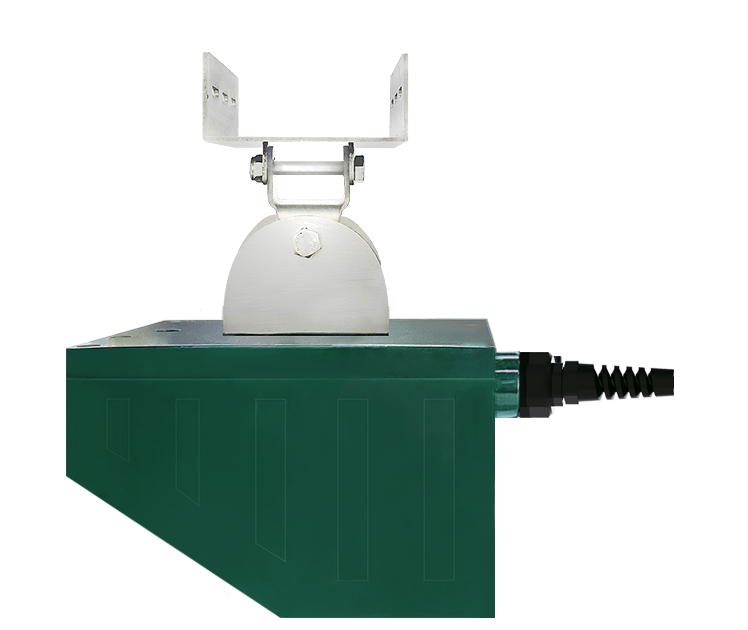

PWFL432-P(ABS)
Summary indicators
· Non-contact measurement, no wear, no pollution
· Array antenna, small size, light weight, easy installation
· Built-in Angle measuring function
· Free from corrosion, foam, etc
· Not affected by changes in atmospheric water vapor, temperature and pressure
Summary indicators
· Range of water level: 12m
· Water level accuracy：±2mm
· Operating temperature: - 40 ℃ ~ 70 ℃
· Storage temperature: - 20 ℃ ~ 60 ℃
· Field protection grade: IP68
· Operating frequency of water level radar：60GHz
· Power supply current: ≤60mA (work), ≤1mA(sleep)
· Electrical source: 5.5~30V DC
· Communications: RS485
The velocity measurement
· Speed range: 0.02~21m/s
· Current radar beam angle:12°×12°
· Speed accuracy: 8.8mm/s;
· Resolution: plus or minus 1mm/s
· Direction discrimination: upstream
·Current radar transmission frequency: 24GHz
· distance to water surface: 0.1~12m
